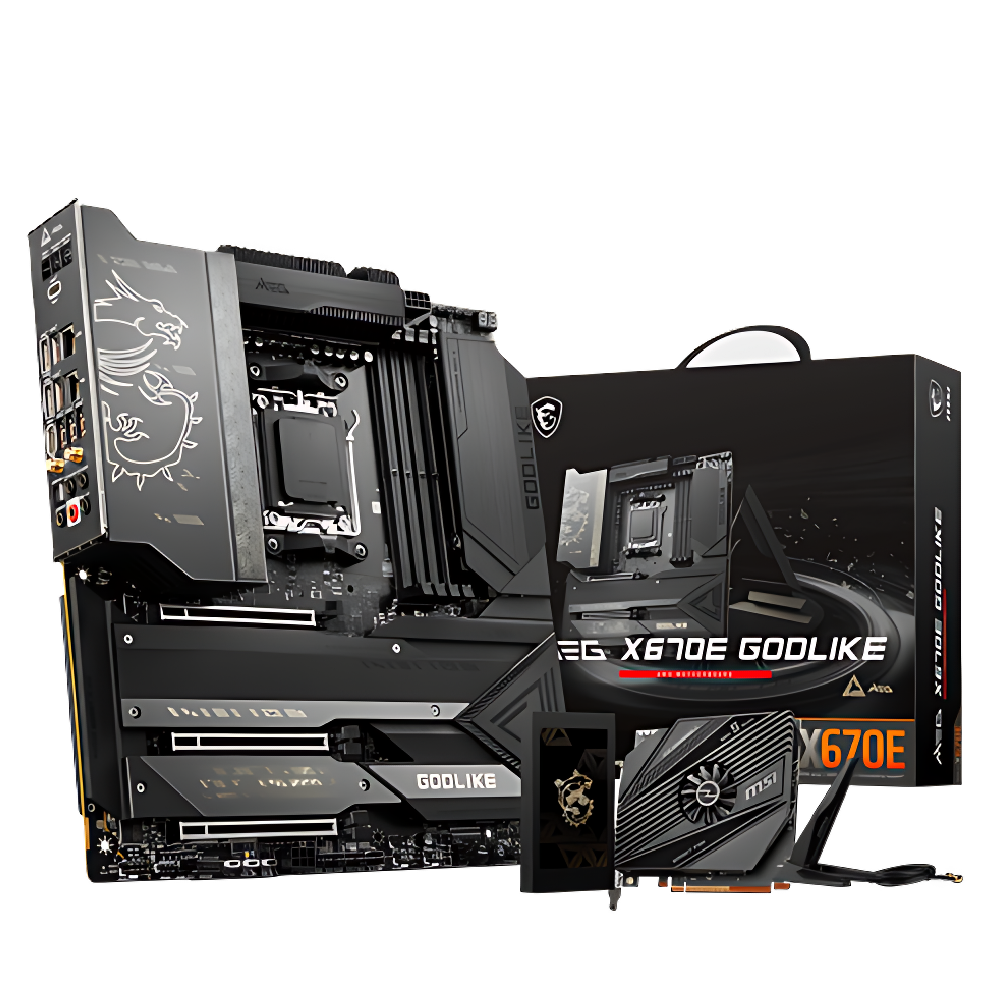

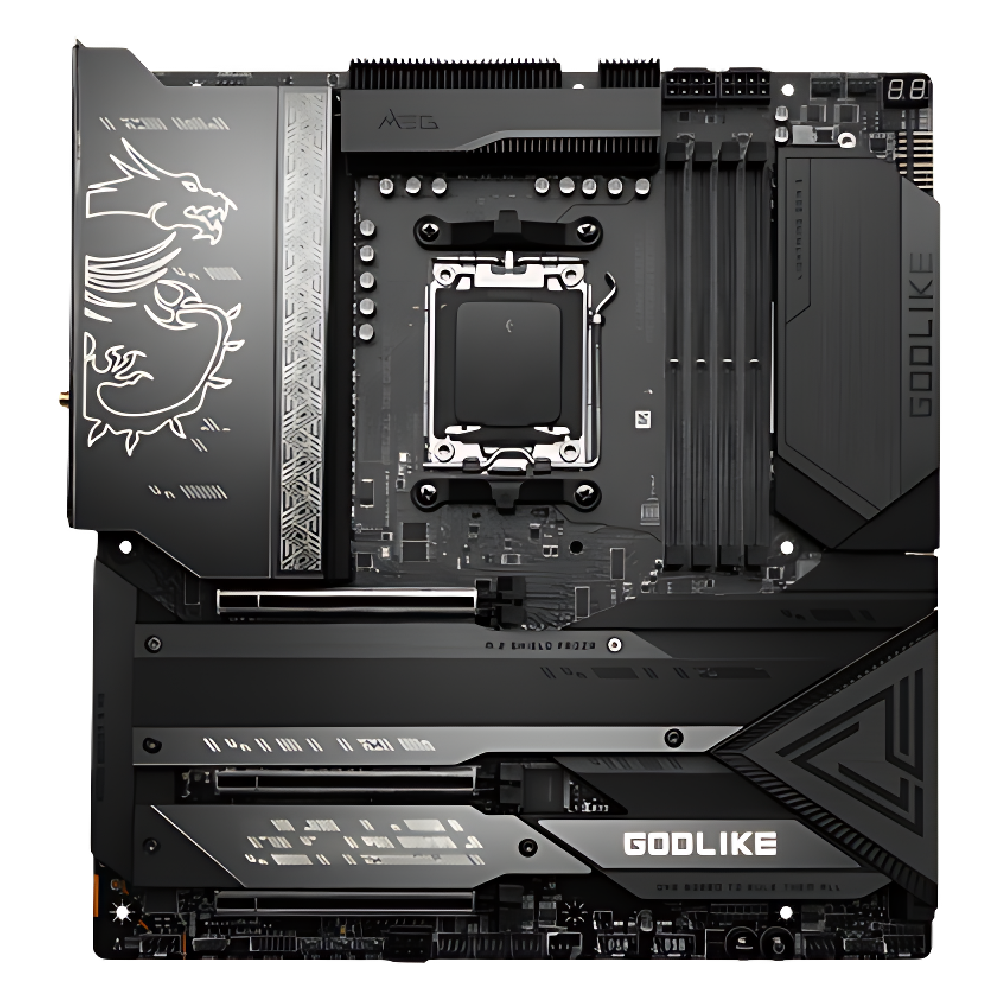

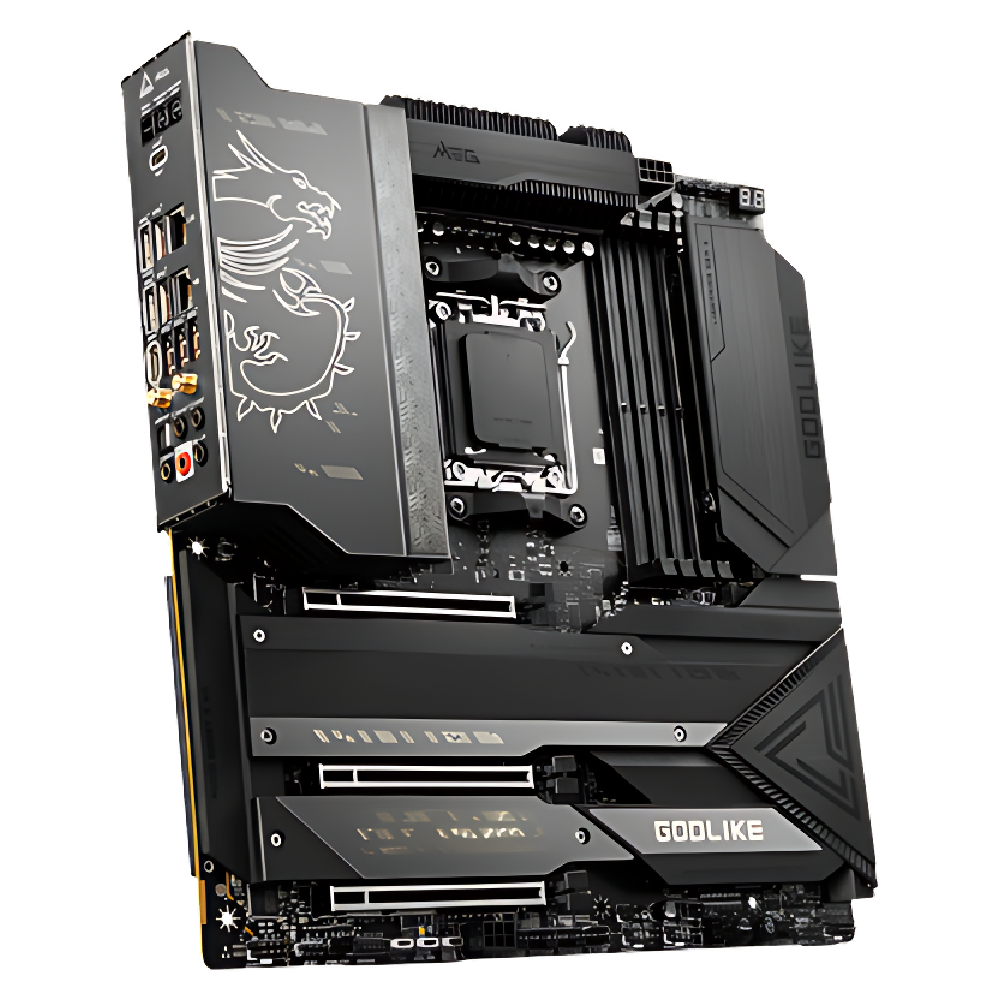

Msi MEG X670E GODLIKE in Qatar

The MSI MEG X670E in Qatar stands as the epitome of excellence for gaming and PC enthusiasts. This motherboard is brimming with cutting-edge features including PCIe 5.0 support, advanced power delivery systems, high-speed connectivity options, and robust cooling solutions, ensuring it exceeds expectations.

5691.51 QAR

Specifications

Check out the Msi MEG X670E GODLIKE WiFi AM5 E-ATX Motherboard.

CHIPSET

AMD X670

CPU SUPPORT

Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5

MEMORY

4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6666+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6666+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

EXPANSION SLOT

3x PCI-E x16 slot
Supports x16/x0/x4, x8/x8/x4
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)

MULTI-GPU

AMD MULTI-GPU Support

STORAGE

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
8x SATA 6G

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
* SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function.

USB

4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Front)
7x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
2x USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front)

LAN

Marvell® AQC113CS-B1-C 10Gbps LAN
Intel® I225V 2.5Gbps LAN

WIRELESS / BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 4pin or 6 pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB 3.2 Gen 2x2 Type C ports
V-check point

LED FEATURE

1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED

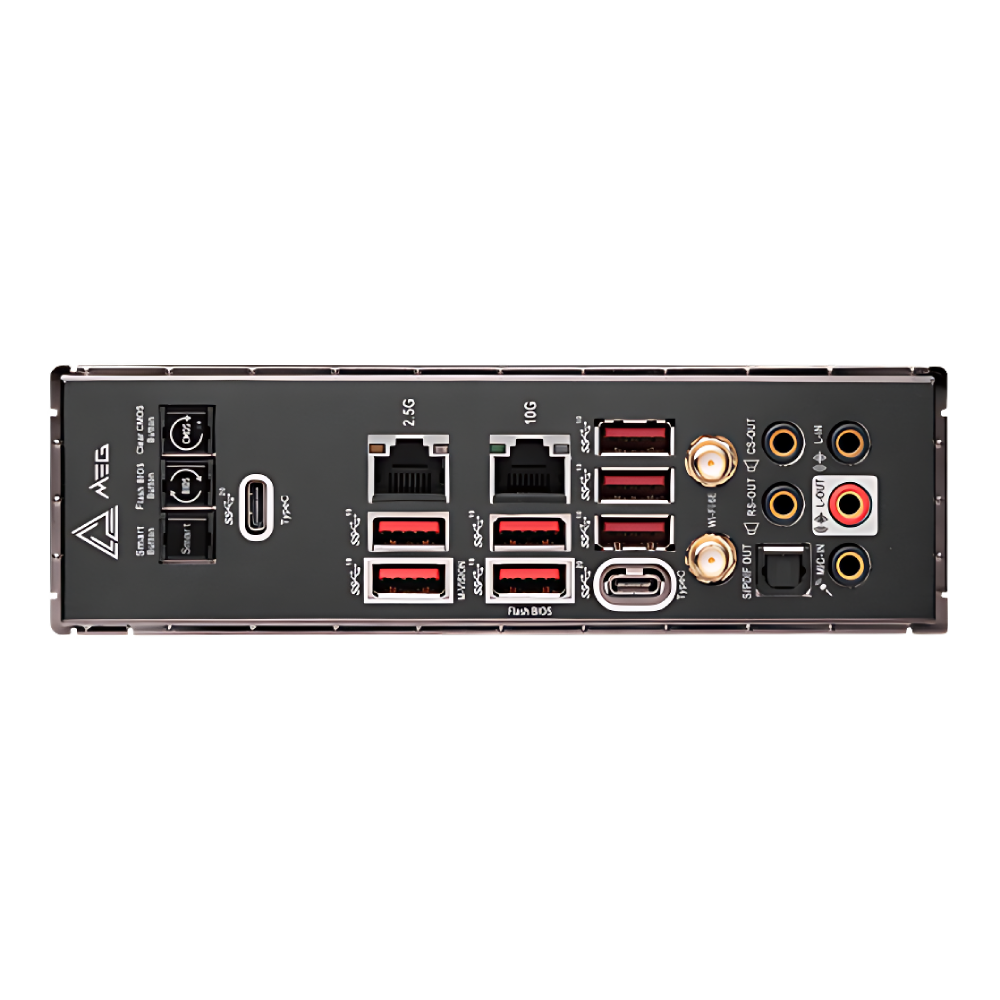

BACK PANEL PORTS

Clear CMOS Button
Flash BIOS Button
2.5G LAN
10G Super LAN
USB 3.2 Gen 2 10Gbps (Type-A)
Wi-Fi / Bluetooth
HD Audio Connectors
Smart Button
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Optical S/PDIF-Out

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION

E-ATX
288mmx304.8mm

FAQ (Frequently Asked Questions)

What is the maximum amount of memory the Msi MEG X670E GODLIKE WiFi AM5 E-ATX Motherboard supports?

The Msi MEG X670E GODLIKE WiFi AM5 E-ATX Motherboard supports up to 128GB of DDR5 memory.

What is the maximum data transfer rate of the Lightning Gen 5 feature?

The Lightning Gen 5 feature can reach up to 128GB/s of unidirectional transfer bandwidth of a x16 interface.

What is the power design of the Msi MEG X670E GODLIKE WiFi AM5 E-ATX Motherboard?

The Msi MEG X670E GODLIKE WiFi AM5 E-ATX Motherboard has a 24+2+1 phases power design with 105A Smart Power Stage and dual CPU power connectors.

How much is the best price of the Msi MEG X670E GODLIKE in Qatar?

5691.51 QAR /- Total Amount. (Tabby EMI Plan Available)

Gaming PC (32)

Gaming Components (170)

Gaming Laptops (31)

Video Cards (81)

Gaming Consoles

Drones (52)

Scooters (4)

gaming accessories

Msi MEG X670E GODLIKE in Qatar

5691.51 QAR

Msi MEG X670E GODLIKE Gallery

Specifications

Similar Products

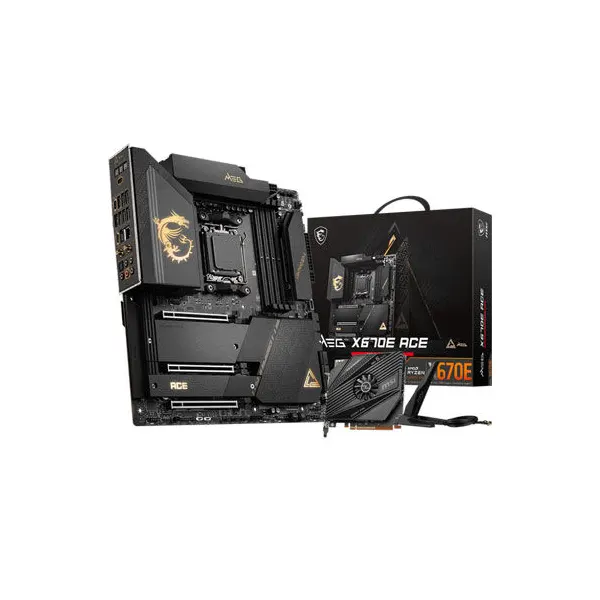

Msi MEG X670E ACE WiFi AM5 E-ATX Motherboard
