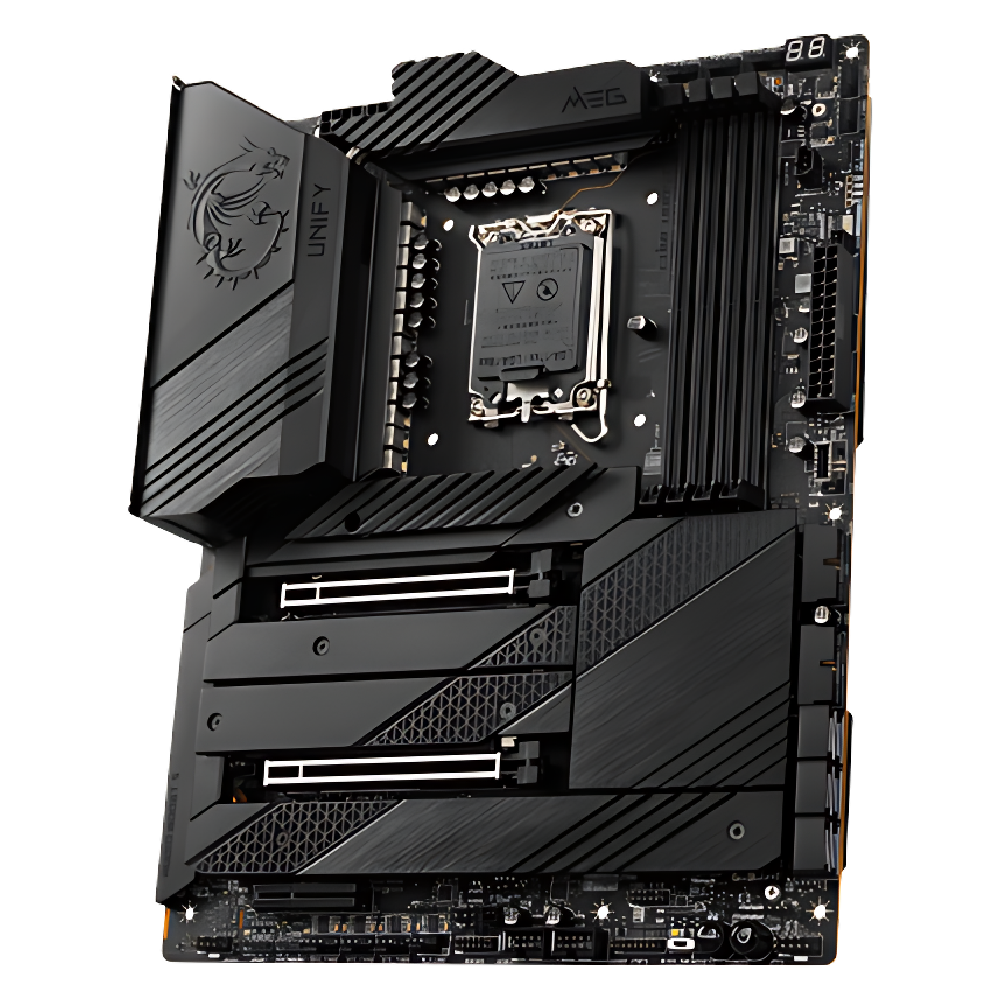

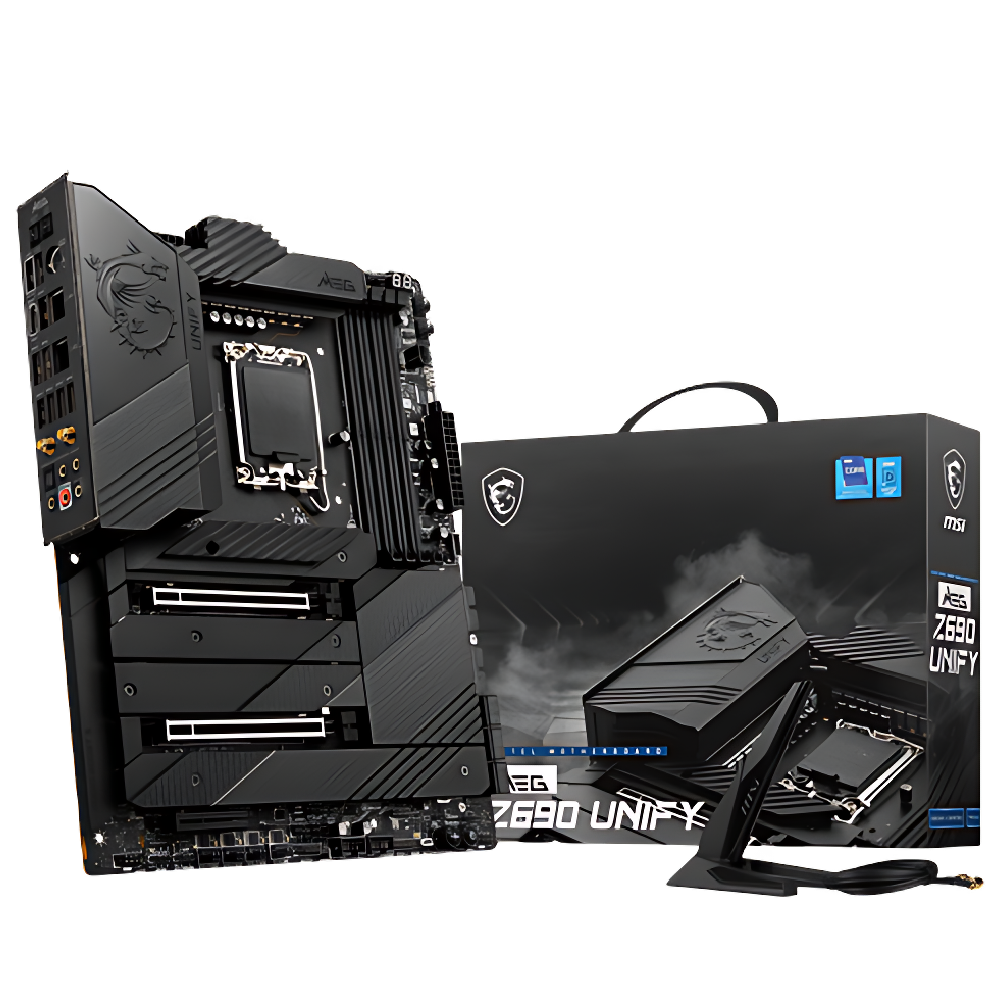

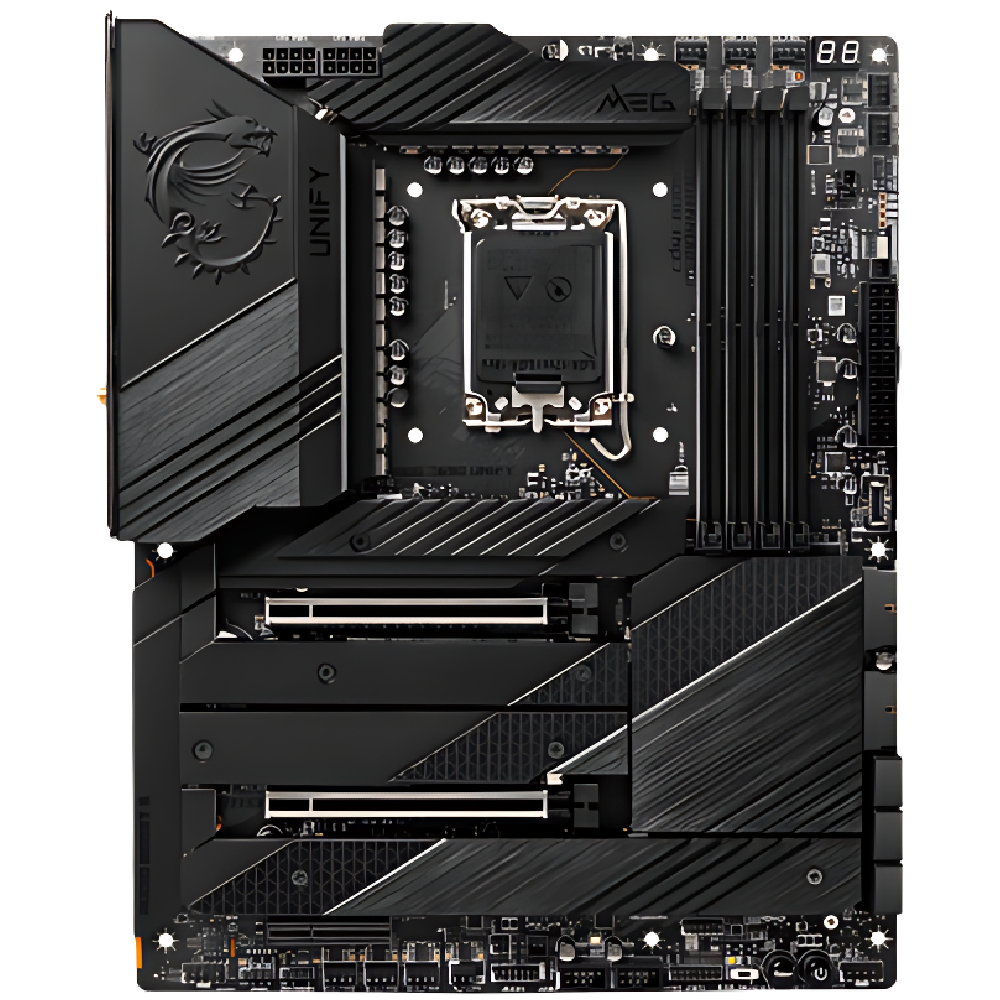

Msi MEG Z690 UNIFY Gallery
Explore the advanced features of the Msi MEG Z690 Unify motherboard with our gallery.
Specifications
Featuring the latest DDR5 memory, 5x M.2 connectors, extreme power design, and dual LAN with Wi-Fi 6E.
| SOCKET | 1700 |
| CHIPSET | Intel® Z690 Chipset |
| DDR5 MEMORY |
6666+(OC) , 6600(OC) , 6400(OC) , 6200(OC) , 6000(OC) , 5800(OC) , 5600(JEDEC) , 5400(JEDEC) , 5200(JEDEC) , 5000(JEDEC) , 4800(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 192 |
| PCI-E X16 | 2 |
| PCI-E X4 | 1 |
| SATAIII | 6 |
| M.2 SLOT | 5 |
| RAID | 0/1/5/10 |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E module |
| USB 3.2 PORTS (FRONT) | 1(Gen2x2, Type C), 4(Gen1, Type A) |

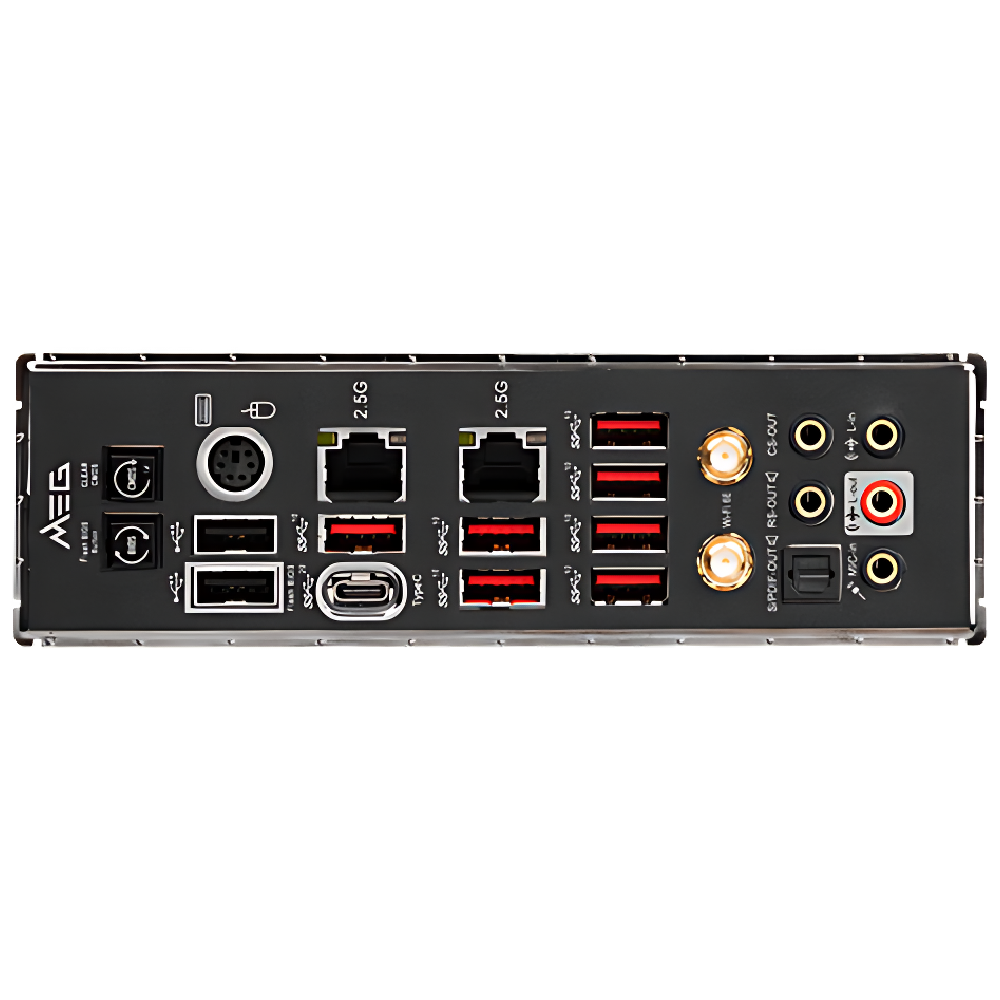

| USB 3.2 PORTS (REAR) | 1(Gen2x2, Type C), 7(Gen2, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) |
7.1-Channel High Definition Audio+ Optical S/PDIF (Realtek® ALC4080 Codec) |
| DIRECTX | 12 |
| SLI | Y |
| CROSSFIRE | Y |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | ATX |
| DIMENSION | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
